The DXF Settings allow for a Job to publish DXF files and check them back into Vault.
DXF files are typically published from the following CAD files via their associated application.
- Inventor
Sheet Metal Partfile will publish via Inventor Publisher - Inventor
IDW Drawingwill publish via Inventor Publisher - AutoCAD
DWG Model Spacedrawing will publish via AutoCAD Publisher
Job Timeout
The maximum time allowance (in seconds) the DXF creation process will run. The Job will terminate if this allocated run time is exceeded.
Attach To CAD File
The published DXF file is also attached to the source file.
Inherit Properties
The published DXF file will inherit the Vault Properties and values of the source CAD file it was generated from.
TIP
Create and use a Signatures Job if needing to apply unique property values to the published DXF file. Use Run Follow Up PDF Jobs to trigger the job.
Match State
Match Revision
DXF Category
Applies a Vault Category to the published DXF file upon Vault check-in.
Publishers
DXF files are typically published from the following CAD files;
AutoCAD Publisher
Configure the AutoCAD Publisher settings for publishing AutoCAD Model Space drawing DWG files into DXF files.
AutoCAD Model Space

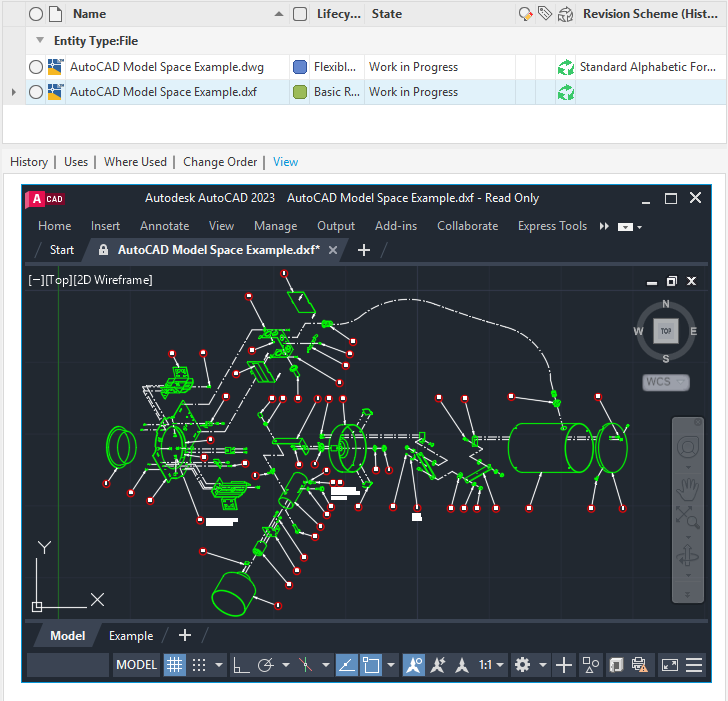

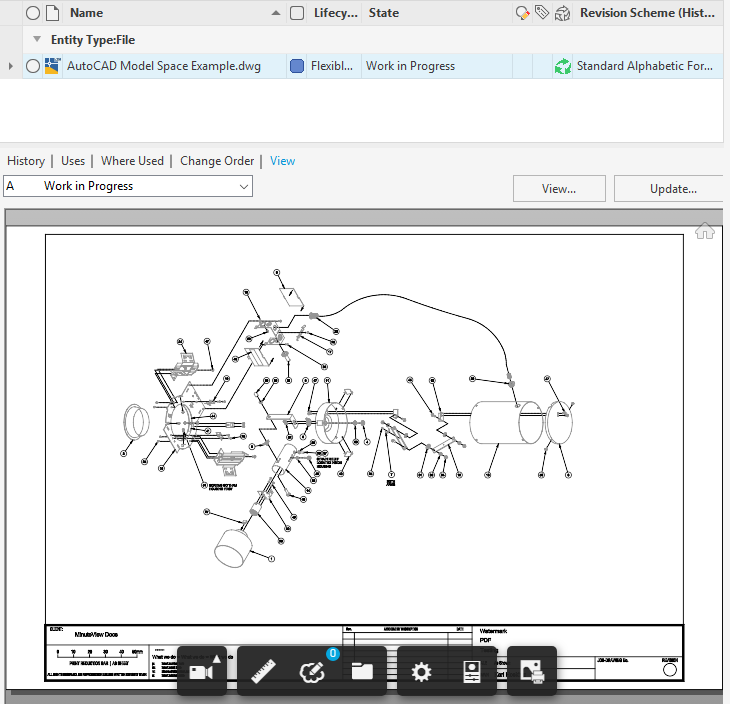

AutoCAD drawing model space can be published into a DXF file.
The published DXF File is checked back into Vault under a specified Vault Category.
Inventor Publisher
Configure the Inventor Publisher settings for publishing as Inventor Sheet Metal part's flat pattern into a DXF file, or an Inventor IDW drawing into a DXF file.

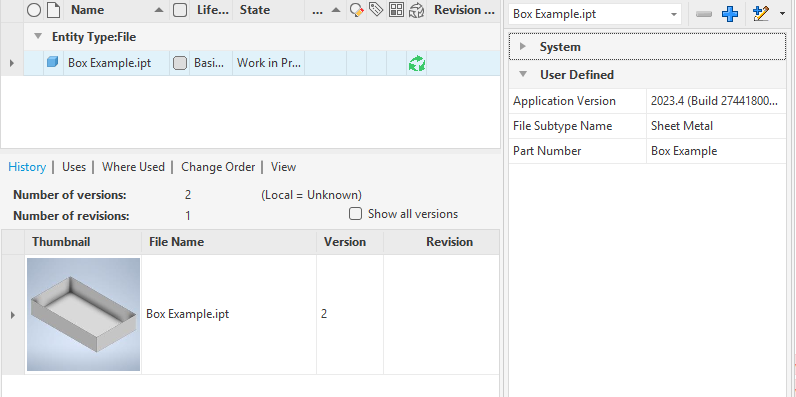

Inventor Sheet Metal Part

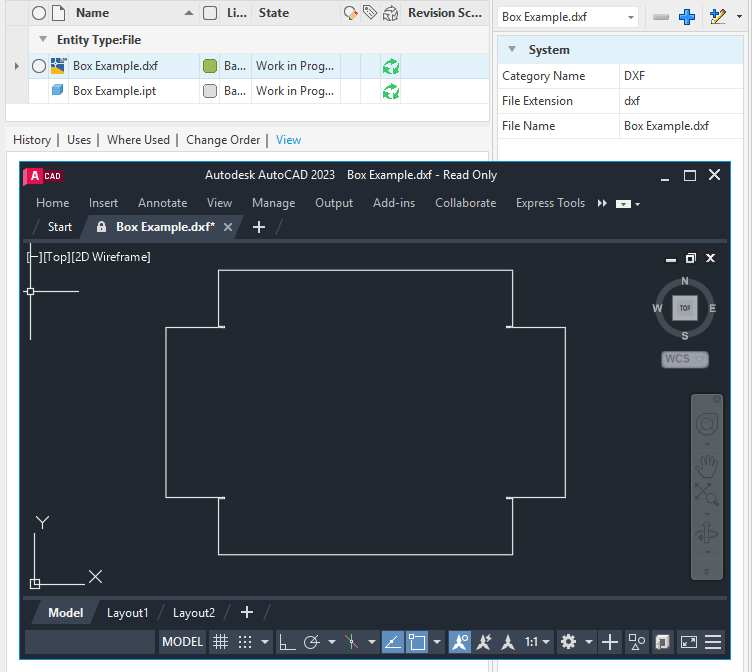

Publish an Inventor Sheet Metal part into a flat patterned DXF file.
The published flat patterned DXF file is checked back into Vault under a specified Vault Category.

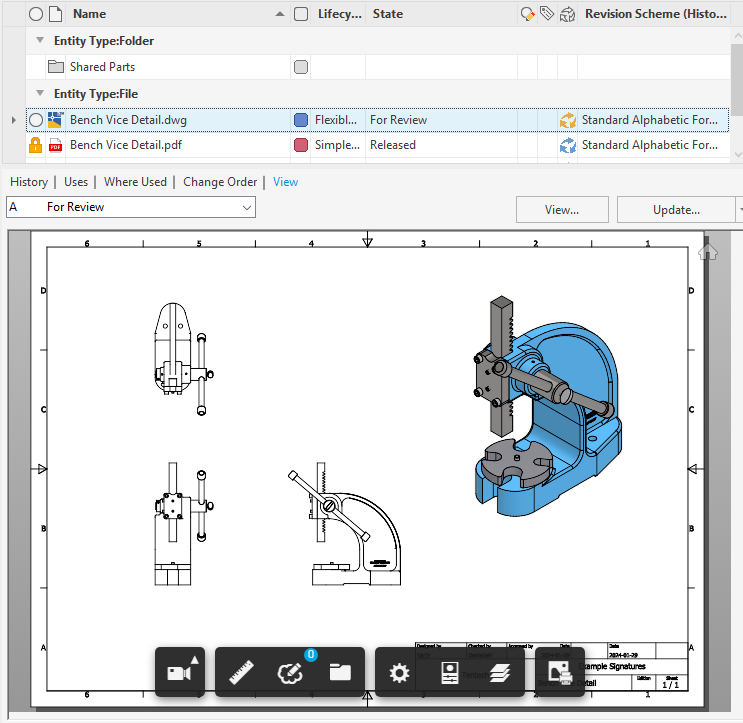

Inventor Drawing File

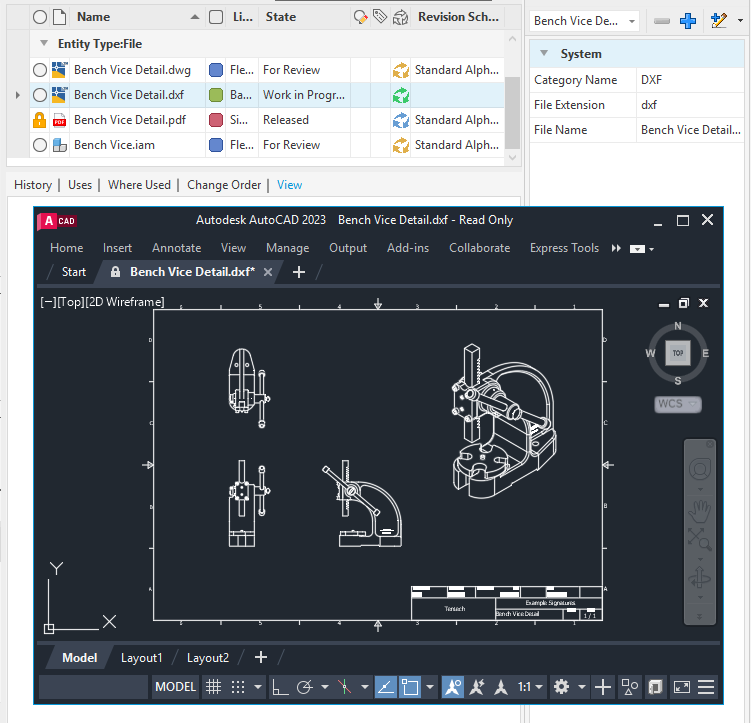

Both Inventor IDW and DWG drawings can be published into DXF files.
The published DXF File is checked back into Vault under a specified Vault Category.
