BC BOM Operations

Reads, adds, updates, and removes lines on an Assembly BOM in Microsoft Business Central.

Purpose

Use this task to interact with Assembly BOM data in Business Central as part of an automated workflow. You can retrieve all lines for a parent item, add new component lines, update quantities and other properties on existing lines, or remove individual lines. The four operations work together — for example, a workflow might get the current BOM, make targeted updates, then write back changed lines.

Business Central setup required

This task requires two setup steps before it will work:

1. A Microsoft Business Central service account must be configured in MinuteView Console — see setup guide
2. The Assembly BOM page must be published as a web service in your BC environment — see below

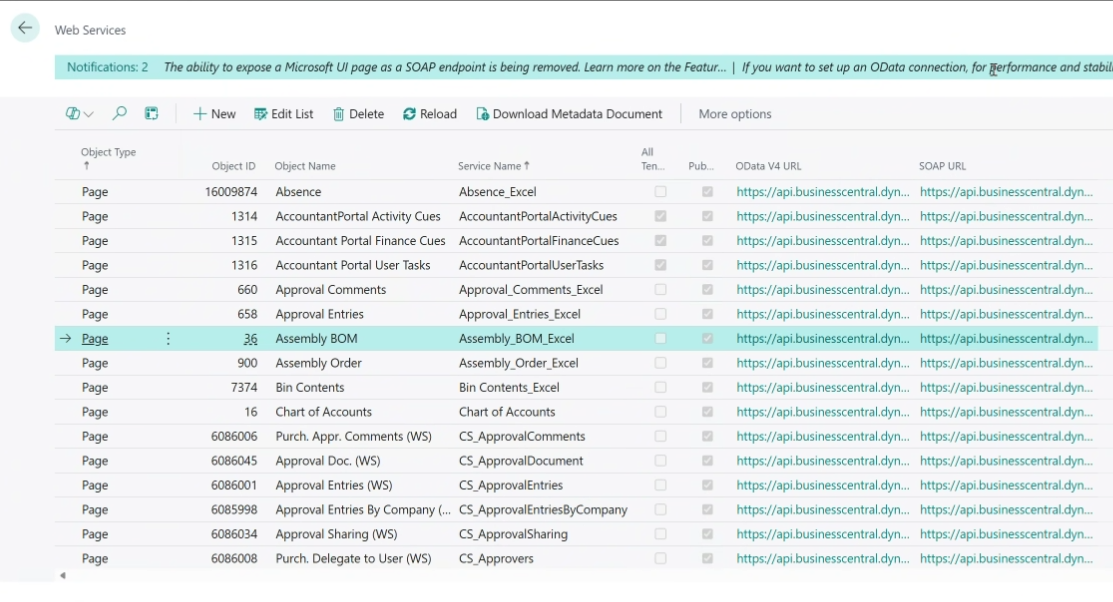

Business Central Setup

Business Central's standard REST API does not expose assembly BOM data. To make it available, you must publish the Assembly BOM page as a web service in BC. This is a one-time step per BC environment.

Steps

1. In Business Central, search for and open Web Services.
2. Click New to add a record.
3. Set Object Type to Page.
4. In the Object ID field, search for and select the Assembly BOM page (search for "Assembly BOM" in the page list).
5. Enter a Service Name — this is the name you will enter in the BOM Web Service field in MinuteView. Choose a clear, consistent name with no spaces, for example: Assembly_BOM.
6. Tick the Published checkbox.
7. Click OK / save.

Naming

The service name you choose here is what you enter in the BOM Web Service field on the task. It is case-sensitive and must match exactly. Using a consistent name across all BC environments (e.g. always Assembly_BOM) will simplify workflow configuration.

Once published, the web service exposes BOM data at a URL in the form:

.../ODataV4/Company('{Company Name}')/Assembly_BOM

MinuteView constructs this URL automatically — you only need to supply the company and service name.

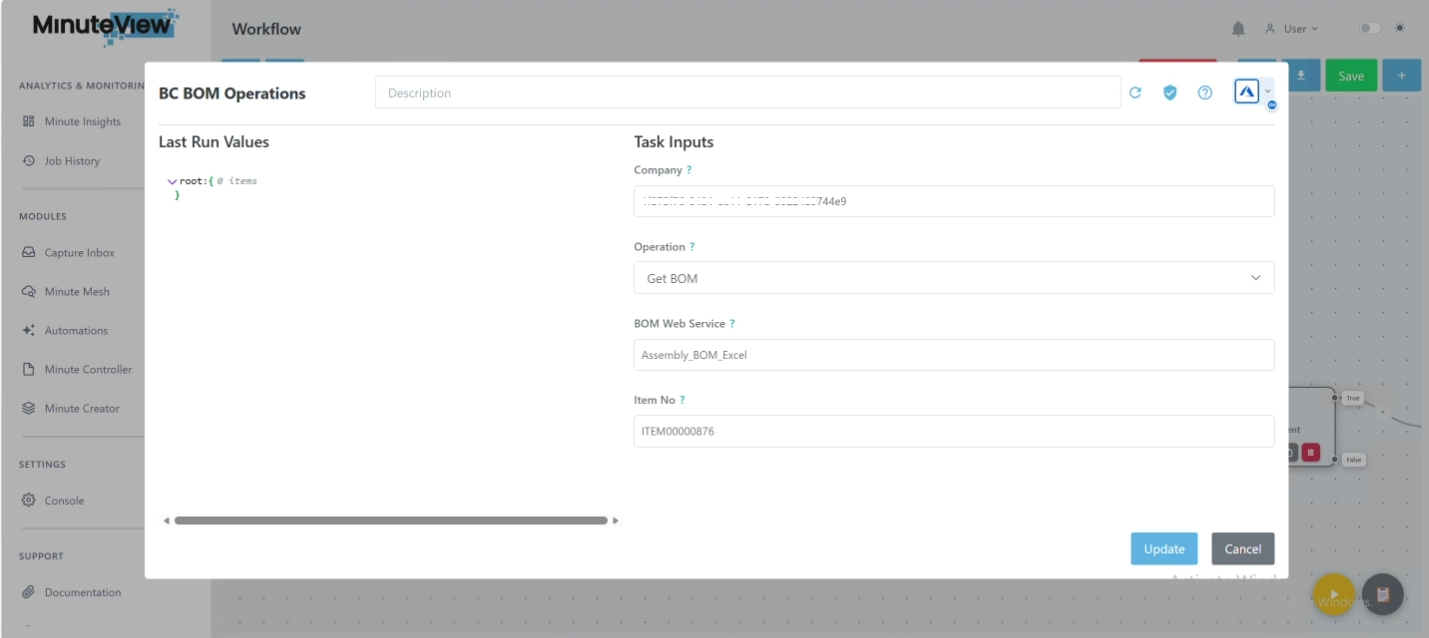

Configuration

Field	Type	Required	Visible for
Company	Text	Yes	All operations
Operation	Dropdown	Yes	All operations
BOM Web Service	Text	Yes	All operations
Item No	Text	Yes	All operations
Component No	Text	Yes	Delete BOM Line
BOM Lines	Object List	Yes	Add BOM Line, Update BOM

Company accepts either the Business Central company display name (e.g. Minetek Pty Ltd) or its GUID. MinuteView resolves either form automatically.

BOM Web Service must match the Service Name entered in BC's Web Services page exactly, including capitalisation.

Operations

Get BOM

Retrieves all component lines for the specified parent item.

Returns Found as true if the item has BOM lines, false if not. If found, also returns a BOM Lines list with all component data.

---

Add BOM Line

Appends one or more new component lines to the item's BOM. Each entry in the BOM Lines list becomes a new line. Existing lines are not affected.

BOM Lines fields:

Field	Required	Description
Component No	Yes	Item number of the component to add.
Quantity	Yes	Quantity required per assembly. Must be greater than zero.
Unit of Measure	No	UOM code (e.g. PCS, EA). Defaults to the component item's base UOM if left blank.
Position	No	Optional position or reference designator.
Type	No	BOM line type. Defaults to Item if left blank. Other valid values: Resource, Text.

---

Update BOM

Updates existing component lines and adds any new ones. Lines not included in the input are left untouched.

Matching is done by Component No. For each entry in the BOM Lines list:

• If a line with that component already exists — it is updated (quantity, UOM, position).
• If no matching line exists — it is added as a new line.
• Any existing lines not mentioned in the input are unchanged.

Uses the same BOM Lines fields as Add BOM Line above.

Updating a single line

To update the quantity on one component without affecting the rest of the BOM, include only that component in the BOM Lines list. All other lines will remain as they are.

---

Delete BOM Line

Removes a single component line from the BOM. Provide the parent Item No and the Component No of the line to remove. All other lines are unchanged.

Outputs

Name	Available when	Description
Found	Get BOM	true if the item has BOM lines, false if not.
BOM Lines	Get BOM, Add BOM Line, Update BOM	The BOM line records. Each line includes the fields below.

BOM Lines record fields:

Field	Description
Parent_Item_No	The parent assembly item number.
Line_No	The line sequence number assigned by Business Central.
Type	The line type (Item, Resource, Text).
No	The component item number.
Description	The component description.
Quantity_per	The quantity required per assembly.
Unit_of_Measure_Code	The unit of measure code.
Position	Position or reference designator, if set.
Assembly_BOM	true if the component item itself also has a BOM.
