Platform Architecture ​

MinuteView is installed on-premises, on your own Windows Server infrastructure. It is made up of two components — MinuteView Server and the Automations Engine — that work together to deliver the full platform. This page explains how those components are deployed, how they communicate, and how the system is secured.

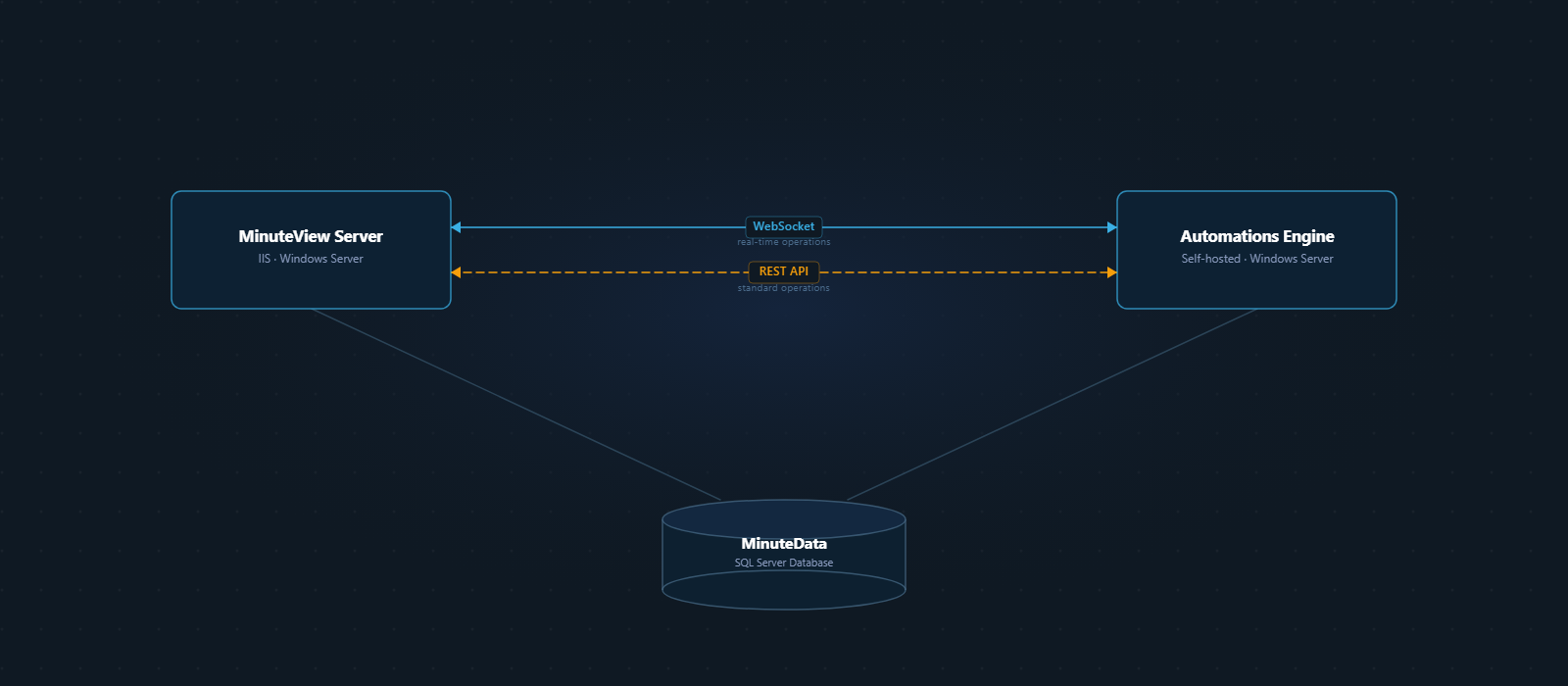

MinuteView Architecture Diagram

MinuteView Server ​

MinuteView Server is the web interface for the entire platform. It is installed as a site in IIS on a Windows Server and is the application that users and administrators access through their browser.

When MinuteView Server starts up for the first time, it connects to a SQL Server instance and automatically creates the MinuteData database. No manual database setup is required — the database schema is built and maintained by MinuteView itself.

MinuteData stores everything the platform needs to operate:

  • User accounts, roles, and permission assignments
  • Workflow definitions and configuration
  • Capture templates and data
  • Operational history and audit records

Automations Engine ​

The Automations Engine is a separate application that handles all background processing — executing automation workflows, running scheduled jobs, and communicating with third-party systems. It runs as a self-hosted web service on Windows Server, independently of IIS.

The Automations Engine does not have its own user interface. It is configured and controlled entirely through MinuteView Server.

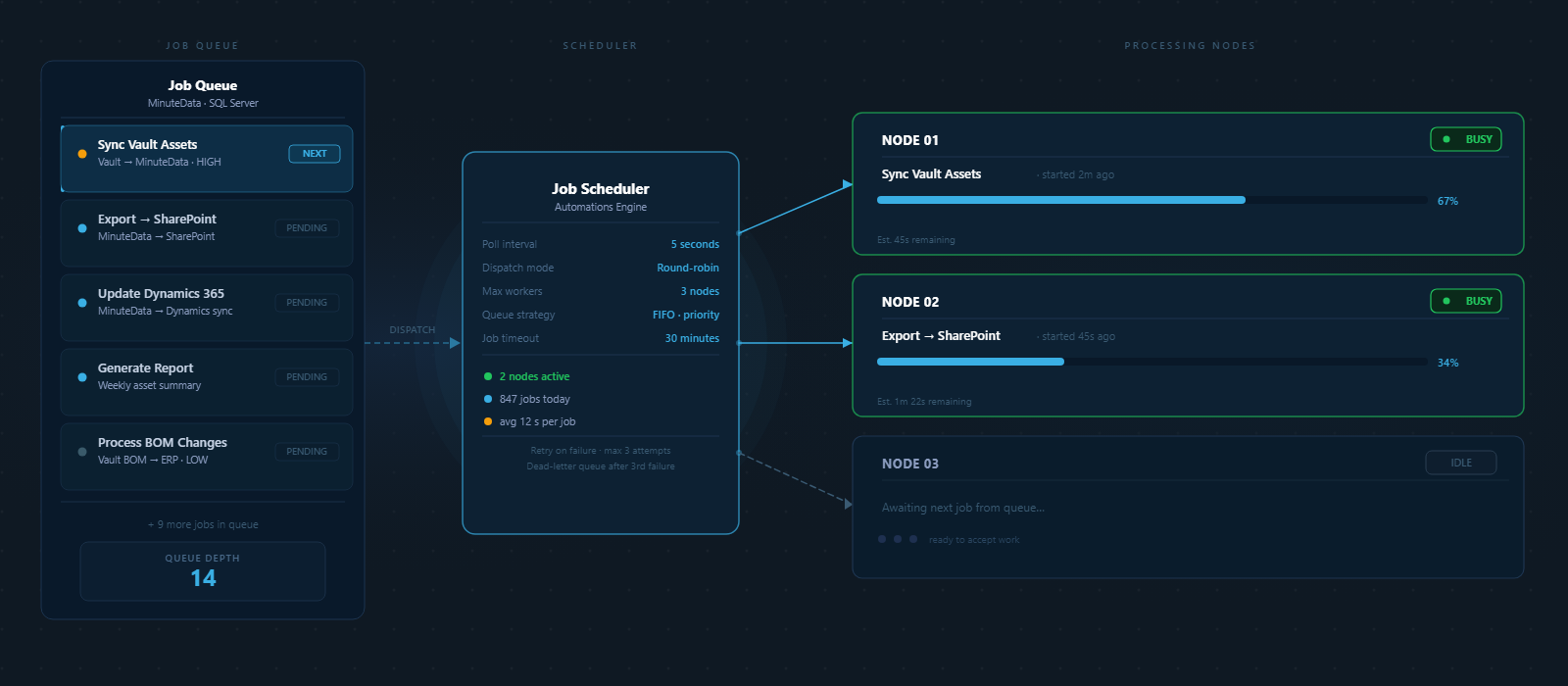

Automations Job Processing

How the Two Components Communicate ​

MinuteView Server and the Automations Engine communicate through two channels depending on the type of operation.

Real-Time Operations (WebSocket) ​

For operations that require an immediate response — such as triggering a workflow to run right now, or using the AI chat in Mesh — the two components communicate over a WebSocket connection. This provides a persistent, low-latency link between the web interface and the execution engine.

Protocol Consistency

Both MinuteView Server and the Automations Engine must use the same protocol — either both HTTP or both HTTPS. A mixed environment (one on HTTP, the other on HTTPS) will break WebSocket communication.

Standard Operations (REST API) ​

For everything else — submitting jobs to the queue, fetching job results, managing workflows, transmitting configuration — the two components communicate over a REST API. All API calls are authenticated; the Automations Engine identifies itself to MinuteView Server using a registered client application credential.

Security ​

User Passwords ​

All user passwords are hashed, salted, and encrypted before being stored in the database. Passwords are never stored in plain text.

Inter-Service Authentication ​

Communication between MinuteView Server and the Automations Engine is authenticated using client application registrations. Each Automations instance registers a unique identifier tied to its host machine — the same credentials cannot be reused from a different server.

Encryption in Transit ​

Both applications should be configured with valid SSL certificates so that all communication occurs over HTTPS.

Job Processing ​

The Automations Engine uses a background job processing system to manage task execution. Jobs can be:

  • Queued for immediate execution
  • Scheduled to run at a specific time or on a recurring schedule
  • Distributed across multiple processing nodes for high-throughput or specialised workloads

For most deployments, a single Automations Engine handles all job types. In higher-demand environments, additional nodes can be configured to handle specific categories of work — for example, a dedicated node for AI processing or CAD export tasks.

External Triggers and Webhooks ​

The Automations Engine can be triggered by external systems via HTTP requests routed through MinuteView Server.

How it works:

  1. An external system sends a GET or POST request to MinuteView Server
  2. MinuteView Server authenticates the request (if required) and routes it internally
  3. The Automations Engine executes the corresponding workflow
  4. The result is returned to the originating system through MinuteView Server

External triggers can be configured as authenticated (requiring API credentials) or public (for open submission endpoints). All external communication is mediated through MinuteView Server — the Automations Engine is never exposed directly.

Deployment Summary ​

ComponentDeploymentPurpose
MinuteView ServerIIS on Windows ServerWeb interface, user management, configuration
Automations EngineSelf-hosted service on Windows ServerWorkflow execution, integrations, background jobs
MinuteDataSQL Server (auto-created)Shared data and job storage for both components
